Version: 1.20.1

UI Actions

User interface (UI) actions are buttons, links, and context menu items on forms and lists. They allow you to customize the UI to be more interactive, adjustable, and comfortable for working.

tip

Role required: admin.

UI action types​

  1. On forms:
    • Header left
    • Header right
    • Burger menu
    • Field label context menu
    • Link
    • Bottom
  2. On lists:
    • Header left
    • Header right
    • Burger menu
    • Column header context menu
    • Row context menu
    • Link
    • Bottom
  3. Other:
    • Button context menu
    • Dependency map context menu

UI actions on form​

UI actions on list​

Customize a UI action​

You can create new or customize existing UI actions.

To do so, complete the following steps:

  1. Navigate to System Settings → UI Actions.
  2. Click New or select an existing UI action.
  3. Customize UI action using the form provided.
  4. Click Save or Save and exit to apply the changes.

UI Action form fields

FieldMandatoryDescription
NameYSpecify a UI action name. This text is displayed on the button, link, or as a context menu item.
TableYSpecify a table to display UI action on.
ParentNSpecify the context menu item to be a parent for the current UI action (applicable for the Burger menu UI action type).
CommentsNAdd a brief description of the action.
ActiveNSelect this checkbox to display the UI action on the form (list, context menu).
InheritsNSelect this checkbox to make this UI action available for all child tables of the table specified in the Table field.
OrderNSpecify the order of the displaying. If there are UI actions of the same type, they are arranged in the ascending order.
Overrides byNSpecify a UI action that will be overridden by the current UI action. Learn more about [UI action inheritance and override](./UI action-inheritance-and-override).
tip

You can edit some types of the UI actions like buttons and links in a quick way. To do so, complete the steps below:

  1. Right-click the UI action you need to edit to open a context menu.
  2. Click Edit UI action. The UI action form appears.

Global UI actions​

You can make a UI action displayed on all tables.

To do so, follow the steps below:

  1. Open the UI action record desired.
  2. On the form, specify the Global table in the Table field.
  3. Click Save or Save and exit to apply the changes.
note

Most burger menu items and some buttons on the forms (New, Save, Save and exit) and lists (New, Delete) are global.

Embed UI actions​

The UI action functionality allows you to create multi-level submenu options by embedding items to the burger menu within the forms and lists.

caution

This option is only available for the UI actions of the Burger menu type.

To embed a UI action, follow the steps below:

  1. Create a parent UI action, specify its type with the Burger menu checkbox in the Form style or List style area in the Position and Style tab.
  2. Click Save and exit to leave the form.
  3. Create a child UI action of the same type specifying its Parent option with the UI action created before.
  4. (optional) Select the Inherits checkbox to enable the UI action on the child tables.
  5. Click Save to apply the changes.

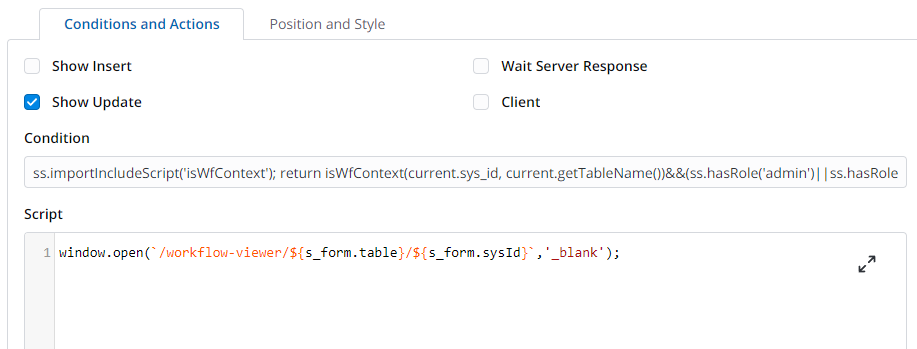

Display condition configuration​

The condition option defines the situations when UI actions are displayed. By default, this field supports the server-side API. Select the Client checkbox to switch the available API to the client-side API. In the Condition field, use the current object of the record to access a UI action. This object can only be used for the UI actions that are displayed on forms.

note

Call the current object within the UI actions during the update since this object is defined. When creating a new UI action, the current value is NULL.

Use logical operators && (AND) and || (OR) to compose the complex conditions.

Use conditions to call the created Script Include on the server-side. In the example below, the function wfContextExists() of Script Include with the same name gets current.sys_id and current.getTableName as recordID and tableName arguments.

note

Use the ss object to call the SimpleSystem methods.

This UI action is a reference to the record with the ID of the getTableName table. If a record exists, the function returns true, and it returns false when there is no record found. Depending on the value returned, the function displays the UI action or not.

Example
function wfContextExists(recordID, tableName){
  const table = new SimpleRecord('sys_db_table');
  table.get('name', tableName);
  const wfContext = new SimpleRecord('wf_context');
  wfContext.addQuery('related_record_id', ss.getDocIdByIds(table.sys_id, recordID));
  wfContext.selectAttributes('sys_id');
  wfContext.query();
  return (wfContext.getRowCount() > 0)
}

Define a UI action behavior with a script​

The Script field defines the UI action behavior. By default, this field supports the server-side API. Select the Client checkbox to switch the available API to the client-side API.

For example, this UI action adds an informational message with the Description field content:

ss.addInfoMessage(current.description);

When the current object is called, it is not necessary to use the initialize() method; the object context is already initiated.
