Date and Time Columns
In SimpleOne, the columns of Date, Time, Date/Time, Date/Time Specific, and Days of week types are commonly used in schedules, business rules, task management, logs, and others.
Date
The database stores values of the column type in ISO 8601 format: YYYY-MM-DD. This format does not specify the time of the day. The size of the stored data is 4 bytes.

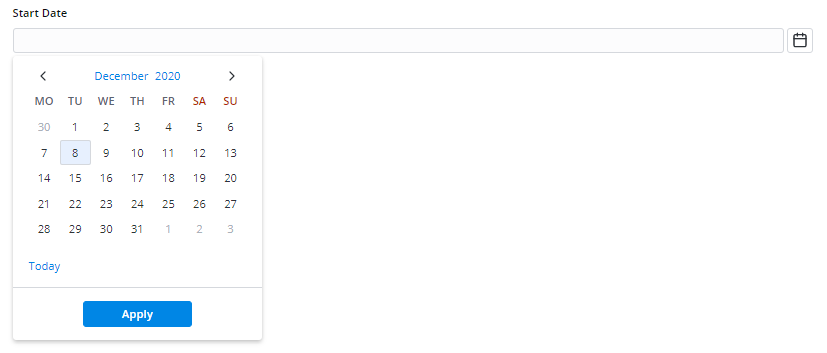

In the SimpleOne interface, it is displayed as an input field with a date picker.
According to the date format of the current user, the field can contain:
- Numbers
- Slash ( / )
- Hyphen ( - )
- Dot ( . )
Date elements must meet the following criteria:
| Element | Range | Comment |
|---|---|---|
| Day | [01..31] | The value specified should not exceed this range. |
| Month | [01..12] | The value specified should not exceed this range. |
| Year | [1000...] | The value specified should not exceed this range. |
See the Create Columns article to learn how to create a Date type column.
Time
This column type is used to store time in ISO 8601 format: hh:mm:ss. The timezone is not taken into account. The date is not stored. The size of the stored data is 8 bytes.
The allowed symbols are numbers and a colon ( : ).
Timestamp elements must meet the following criteria:
| Element | Range | Comment |
|---|---|---|
| Second | [00..59] | The value specified should not exceed this range. |
| Minute | [00..59] | The value specified should not exceed this range. |
| Hour | [00..23] | The value specified should not exceed this range. |
See the Create Columns article to learn how to create a Time type column.
Date/Time
This column type stores time measured in seconds. Date and time are stored in ISO 8601 format: YYYY-MM-DD hh:mm:ss.
In the SimpleOne interface, it is displayed as an input field with a date and time picker.
According to the date format of the current user, the field can contain:
- Numbers
- Slash ( / )
- Hyphen ( - )
- Dot ( . )
Date and time elements must meet the following criteria:
| Element | Range | Comment |
|---|---|---|
| Second | [00..59] | The value specified should not exceed this range. |
| Minute | [00..59] | The value specified should not exceed this range. |
| Hour | [00..23] | The value specified should not exceed this range. |
| Day | [01..31] | The value specified should not exceed this range. |
| Month | [01..12] | The value specified should not exceed this range. |
| Year | [1000..9999] | The value specified should not exceed this range. |
See the Create Columns article to learn how to create a Date/Time type column.
Date/Time Specific
This column type stores time measured in seconds. Date and time are stored in ISO 8601 format: YYYY-MM-DD hh:mm:ss.
In the SimpleOne interface, it is displayed as an input field with a date and time picker.
This field type is mainly used in Schedules.
In contrast to the Date/Time field type, the Date/Time Specific field type uses the UTC offset parameter defined in the system timezone. That is, the date and time are stored in the database as is, without any offset.
Date and time elements must meet the following criteria:
| Element | Range | Comment |
|---|---|---|
| Second | [00..59] | The value specified should not exceed this range. |
| Minute | [00..59] | The value specified should not exceed this range. |
| Hour | [00..23] | The value specified should not exceed this range. |
| Day | [01..31] | The value specified should not exceed this range. |
| Month | [01..12] | The value specified should not exceed this range. |
| Year | [1000..9999] | The value specified should not exceed this range. |
See the Create Columns article to learn how to create a Date/Time Specific type column.
Days of week
This column type allows selecting one or more days of the week.

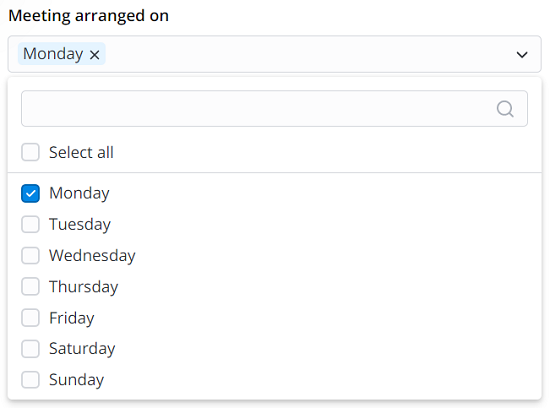

In SimpleOne interface, it is displayed as a drop-down list with checkboxes. One or more days can be selected.
Click Select all to add all days of the week. Click Select all once again to clear the field.
Technically, the field stores a numeric value or a sum of values. The size of data stored is 2 bytes. Each day of the week is assigned a value:
- Monday = 1
- Tuesday = 2
- Wednesday = 4
- Thursday = 8
- Friday = 16
- Saturday = 32
- Sunday = 64
The minimum field value is 0 (no days selected). The maximum value of the field is 127 (all days selected). For example, if Tuesday (2) and Wednesday (4) are selected, the field value is 6.
